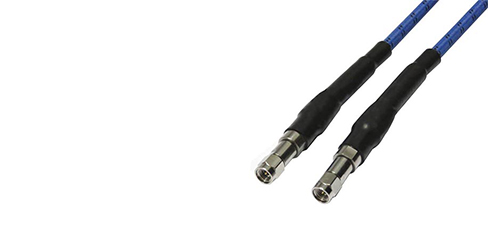

Precision test cable and VNA cable
VNA Microwave/RF Test Cable Assemblies are specifically engineered to provide the most precise VNA measurements in laboratory conditions. They deliver the highest accuracy and greatest time interval between recalibrations of any test assembly on the market today.
Model
Frequency(GHz)
Cable model
Connector 1 Series
Connector 1 Package
Connector 1 Gender
Connector 2 Series
Connector 2 Package
Connector 2 Gender
PDF
PL67-1.85F1.85F-L DC-67 PL67 1.85mm Straight Female 1.85mm Straight Female
PL67-1.85M1.85M-L DC-67 PL67 1.85mm Straight Male 1.85mm Straight Male
PL67-1.85M1.85F-L DC-67 PL67 1.85mm Straight Male 1.85mm Straight Female
PL50-2.4M2.4M-L DC-50 PL50 2.4mm Straight Male 2.4mm Straight Male
PL50-2.4M2.4F-L DC-50 PL50 2.4mm Straight Male 2.4mm Straight Female
PL40-NM3.5M-L DC-18 PL40 N Straight Male 3.5mm Straight Male 暂无
PL40-2.92F2.4M-L DC-40 PL40 2.92mm Straight Female 2.4mm Straight Male 暂无
PL40-2.92M2.4F-L DC-40 PL40 2.92mm Straight Male 2.92mm Straight Female
PL40-SMAMSMAM-L DC-26.5 PL40 SMA Straight Male SMA Straight Male
PL40-3.5M3.5M-L DC-26.5 PL40 3.5mm Straight Male 3.5mm Straight Male
PL40-3.5M3.5F-L DC-26.5 PL40 3.5mm Straight Male 3.5mm Straight Female
PL40-3.5F2.4F-L DC-26.5 PL40 3.5mm Straight Female 2.4mm Straight Female 暂无
PL40-2.92M2.92F-L DC-40 PL40 2.92mm Straight Male 2.92mm Straight Female
PL40-2.92F2.92F-L DC-40 PL40 2.92mm Straight Female 2.92mm Straight Female
PL40-2.92M2.92M-L DC-40 PL40 2.92mm Straight Male 2.92mm Straight Male
PL26-NMNF-L DC-18 PL26 N Straight Male N Straight Female
PL26-NMNM-L DC-18 PL26 N Straight Male N Straight Male
PL26-SMAMNM-L DC-18 PL26 SMA Straight Male N Straight Male
PL26-3.5F3.5F-L DC-26.5 PL26 3.5mm Straight Female 3.5mm Straight Female
PL26-3.5M3.5F-L DC-26.5 PL26 3.5mm Straight Male 3.5mm Straight Female
PL26-3.5M3.5M-L DC-26.5 PL26 3.5mm Straight Male 3.5mm Straight Male
PL26-SMAFSMAF-L DC-26.5 PL26 SMA Straight Male SMA Straight Female
PL26-SMAMSMAF-L DC-26.5 PL26 SMA Straight Male SMA Straight Female
PL26-SMAMSMAM-L DC-26.5 PL26 SMA Straight Male SMA Straight Male
